Using custom atlases

By default, sf-pediatric will use the Brainnetome atlas for preadolescents¹ to perform connectomics analyses. However, different analyses often require different cortical and subcortical atlases. To support flexible connectomics analyses, users can provide their own custom atlas for connectome construction. This page covers the requirements and assumptions behind using custom atlases. Additionally, we included test results comparing native segmentation with the mapped version from fsLR-32k to subject space.

Requirements

sf-pediatric relies on surface- and volume-based registration techniques to transform template-space atlases into subject space. To ensure that mapping between spaces is performed correctly, we follow the BIDS definition for atlases and require that atlases be in the space-fsLR_den-32k space. Using the default Brainnetome atlas for preadolescents as an example, the atlas folder should be structured as follows:

• Directory<atlases_folder>/BrainnetomeChild/

  • atlas-BrainnetomeChild_description.json
  • Directorytpl-fsLR

    • tpl-fsLR_atlas-BrainnetomeChild_den-32k_dseg.dlabel.nii
    • tpl-fsLR_atlas-BrainnetomeChild_den-32k_dseg.json
    • tpl-fsLR_atlas-BrainnetomeChild_den-32k_dseg.tsv

The top-level atlas-BrainnetomeChild_description.json contains information on how the atlas was derived, relevant references, the BIDS version, and other metadata. More information can be found here. The subdirectory tpl-<template> must be named tpl-fsLR, since that is the only currently supported template. It must contain the atlas file *.dlabel.nii, a corresponding *.json sidecar, and a *.tsv file containing label names, groups, and colors. As an example, here is the tsv file for the Brainnetome for preadolescents atlas:

index	label	cifti_label	color_red	color_green	color_blue	opacity
1	SFG_L_6_1	SFG_L_6_1	0	255	0	255
2	SFG_R_6_1	SFG_R_6_1	0	0	255	255
3	SFG_L_6_2	SFG_L_6_2	255	0	0	255
4	SFG_R_6_2	SFG_R_6_2	0	246	255	255
…	…	…	…	…	…	…

Bilateral regions should be numbered differently

If your custom atlas contains bilateral regions (e.g., the Desikan atlas from FreeSurfer), you should assign different labels for to the left and right regions. Otherwise, the mapping process may overwrite one hemisphere label by the other one. For example, the right/left SFG_(L/R)_6_2 in the Brainnetome Child atlas is labeled 3 and 4 respectively.

The *.dlabel.nii file should contain cortical labels in fsLR-32k space and subcortical structures aligned with the MNI152NLin6Asym template. To create your atlas in the correct space, we recommend using the Connectome Workbench toolbox. A few already available atlases can be found in the TemplateFlow archive (be sure that it contains subcortical structures!).

Use your custom atlas in sf-pediatric

In order for sf-pediatric to find your custom atlas, specify the folder containing your custom atlas with the --atlas_folder and the --atlas_name parameters. By default, sf-pediatric will look for your atlas at: ${atlas_folder}/${atlas_name}.

If the pipeline can’t find your folder

If sf-pediatric can’t find your atlas folder, it will return an error message similar to this:

ERROR ~ No such file or directory: /path/to/your/atlas

In this case, verify that the resolved path matches the location of your atlas and that the naming convention described above is respected.

In addition to those two parameters, you should also provide the subcortical indexes for your atlas using --subcortical_rois. This allows the QC report to correctly visualize the segmented subcortical structures. It is highly recommended that you provide those indexes to get the most out of the QC report.

Example command-line

Starting from the basic example described in the a simple example section, specifying a custom atlas through the params.yml file will look similar to this:

params.yml

input: "/absolute/path/to/your/BIDS_directory"
outdir: "/absolute/path/to/results"
atlas_folder: "/absolute/path/to/folder"
atlas_name: "BrainnetomeChild"
subcortical_rois: "189:224"

Command

nextflow run scilus/sf-pediatric -r 0.3.0 \
   -params-file params.yml \
   -profile docker,tracking \
   -resume

Note

This example uses the default atlas, but you can replace the atlas-specific arguments (--atlas_folder, --atlas_name, and --subcortical_rois) with values for your own atlas. For more information on the available parameters, see this section.

Using multiple different atlases

To perform connectome analyses using different atlases, we recommend performing sequential pipeline runs with the different atlases specified using --atlas_name as the pipeline does not currently iterate over multiple atlas names. Using the -resume option, the pipeline will reuse previously cached processes, avoiding unnecessary recomputation of the segmentation. Don’t forget to update --subcortical_rois when changing atlases!

How accurate is the mapping process?

Transforming labels between spaces can introduce minor interpolation and registration errors. We evaluated whether mapping from fsLR-32k space to native subject space closely matched native segmentation. Using test data, we performed native segmentation with the Desikan atlas². For younger participants (< 1 year old), we used a combination of bibsnet³ and infant FreeSurfer⁴ whereas recon-all-clinical⁵ was used for older participants. Following native segmentation, we mapped the Desikan atlas (previously transformed into fsLR-32k space and formatted as described in the requirements) from fsLR-32k space to native subject space.

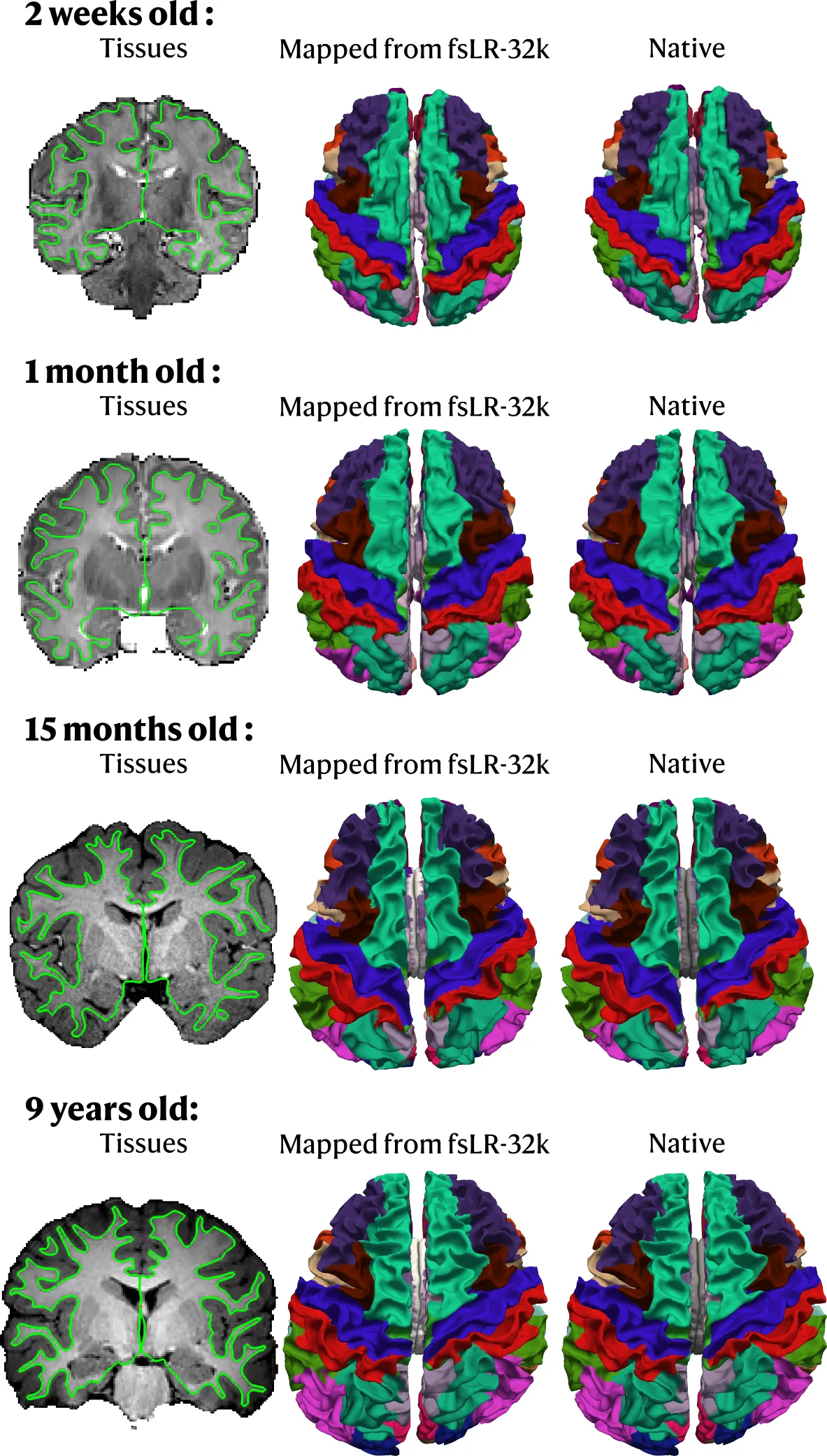

Results are showcased in the figure below. Overall, the mapped and native segmentations showed close agreement across participants and age groups:
