Understanding the profiles

What are profiles?

Profiles let you choose which parts of the pipeline to run. Think of them as building blocks, you can use just one or combine several to create a pipeline run that suits your research aims.

New to sf-pediatric?

We recommend you start with -profile docker,tracking on a few subjects to process your raw diffusion MRI data. This will give you a sense of how the pipeline runs. You can add additional profiles afterwards.

Types of profiles

Every pipeline run needs:

1. Configuration Profile - How to run: docker, apptainer, arm64, or slurm
2. Processing Profile(s) - What to analyze: tracking, segmentation, bundling, connectomics

Processing Profiles

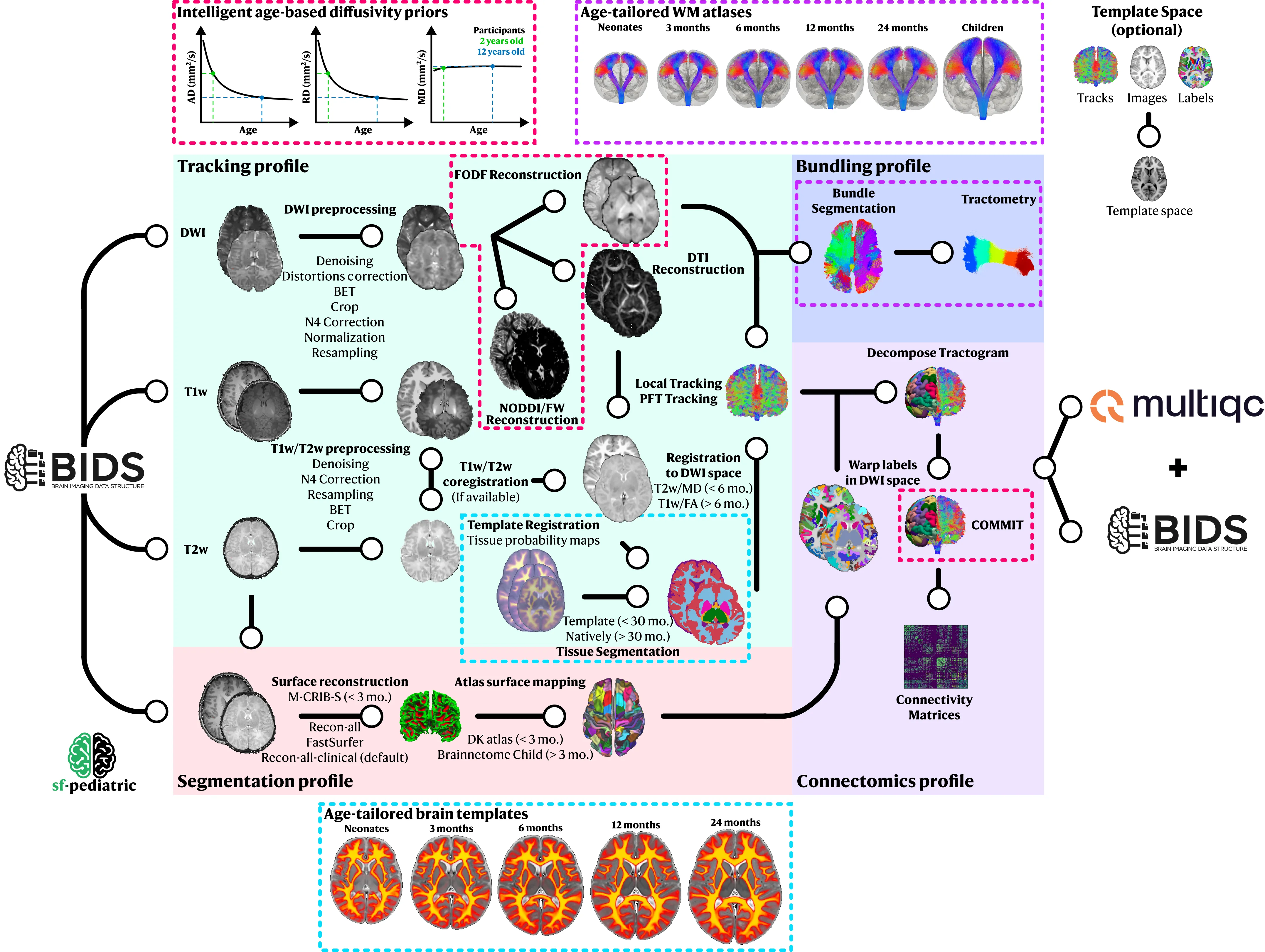

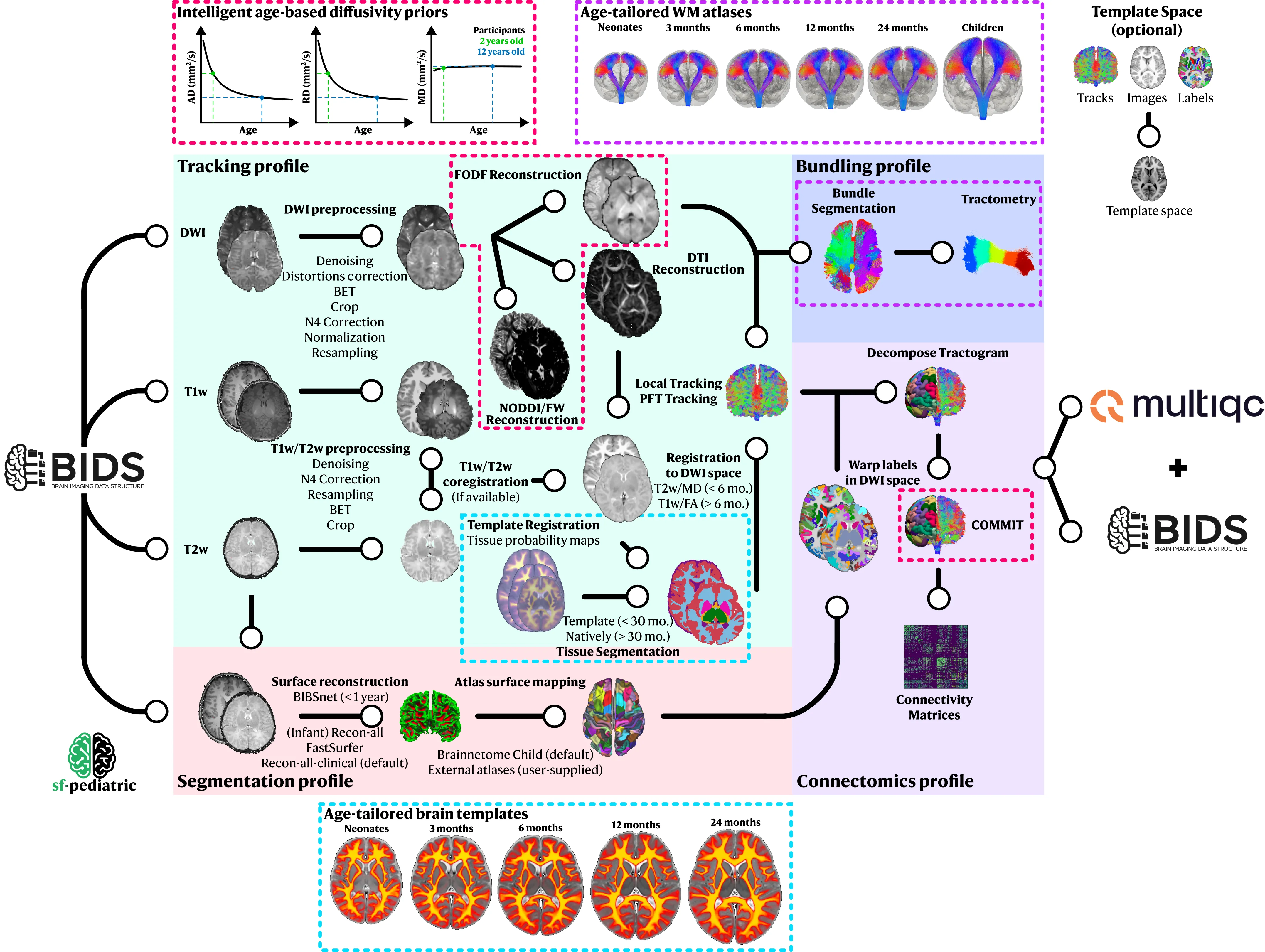

sf-pediatric is organized into profiles, enabling total control over which processing steps are applied to your data. Currently, four profiles are available, enabling raw processing of dMRI data, white matter bundle analysis, or connectomics analysis.

1. tracking

   This is the core profile behind sf-pediatric. By selecting it, DWI data will be preprocessed (denoised, corrected for distortion, normalized, resampled, …). In parallel, T1w will be preprocessed (if -profile segmentation is not selected), registered into diffusion space, and segmented to extract tissue masks/maps. Tissue segmentation method will be adapted based on the subject’s age. Preprocessed DWI data will be used to fit both the DTI and fODF models. As the final step, whole-brain tractography will be performed using both local tracking/particle filter tracking (PFT) and concatenated into a single tractogram.

   Use this when: You have raw diffusion MRI data.

   Requires: DWI data, T1w or T2w image, participant age in participants.tsv

2. segmentation

   By selecting this profile, FreeSurfer recon-all, Recon-all-clinical, FastSurfer or M-CRIB-S/InfantFS will be used to process the T1w/T2w images and the Brainnetome Child Atlas (Li et al., 2022) or Desikan-Killiany (for infant (< 3 months)) will be registered using surface-based methods in the native subject space.

   Use this when: You need brain labels (required for connectomics).

   Requires: T1w image (or T2w for infants < 3 months), participant age in participants.tsv

   FreeSurfer license required!

   Get a free license here. Specify with: --fs_license /path/to/license.txt

3. bundling

   This profile enables automatic bundle extraction from the processed whole-brain tractogram. By selecting it, bundle recognition will be performed in each subject using either the closest age-matched WM atlas (neonates, 3 months, 6 months, 12 months, 24 months, or children). Extracted bundles will then be filtered, uniformized, colored (affect only visualization), and tractometry will be performed to extract WM microstructure measures for each bundle. To use your own custom WM atlas, please see the --atlas_directory parameter.

   Use this when: You want to analyze specific white matter bundles (e.g., corticospinal tract, arcuate fasciculus).

   Requires: Must run tracking profile first (needs whole-brain tractogram)

4. connectomics

   By selecting this profile, labels will be registered in diffusion space and used to segment the tractogram into individual connections. The segmented tractogram will then be filtered, using COMMIT to remove false positive streamlines. Following filtering, connectivity matrices will be computed for a variety of metrics and outputted as numpy arrays usable for further statistical analysis.

   Use this when: You want to perform structural connectome analysis.

   Requires: Must run both tracking AND segmentation profiles first

Configuration Profiles

Choose one of these to specify how the pipeline runs:

1. docker (Recommended for personal computers)

   Uses Docker containers. Best for personal computers (Windows, Mac, Linux).

2. apptainer (Recommended for HPC clusters)

   Uses Apptainer/Singularity containers. Best for HPC clusters where Docker isn’t available.

3. arm64 (Experimental)

   For Mac M1/M2/M3/M4 chips. Combine with docker: -profile docker,arm64,tracking

4. slurm

   Uses SLURM job scheduler on HPC clusters. Combine with apptainer: -profile apptainer,slurm,tracking. More details on how to launch the pipeline on HPC using SLURM can be found here.

---

Common Combinations

Goal	Profiles	Notes
Basic tractography	-profile docker,tracking	Start here
Full connectomics	-profile docker,tracking,segmentation,connectomics	Requires FreeSurfer license
Bundle analysis	-profile docker,tracking,bundling	Tract-specific measures
Everything	-profile docker,tracking,segmentation,bundling,connectomics	All analyses
On HPC cluster	-profile apptainer,slurm,...	Use apptainer instead of docker on a SLURM cluster

---

Next: See the usage guide for complete instructions on how to combine profiles and run the pipeline.
